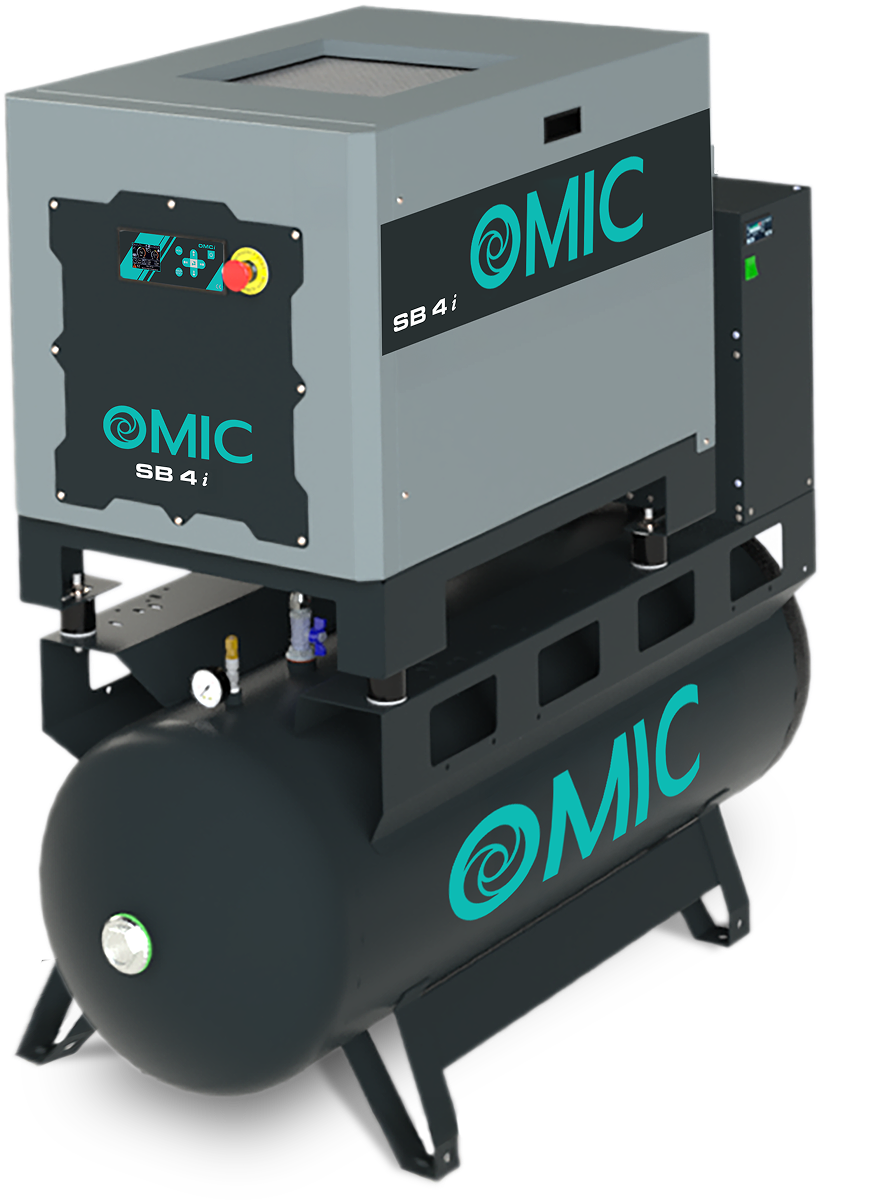

OMIC | Screw compressors with tank and dryer

The OMIC SB and SBi screw compressor series are designed with a belt transmission connection that helps provide lower power consumption across the work cycles.

The compact shape, achieved through optimal component arrangement, makes the compressors ideal for continuous work or short work cycles, whilst offering high performance.

OMIC i Controller

Electronic controller with multifunction displaystarting from SB 4 version.

Soundproofed structure

Low noise level thanks to the sound-absorbingpanels.

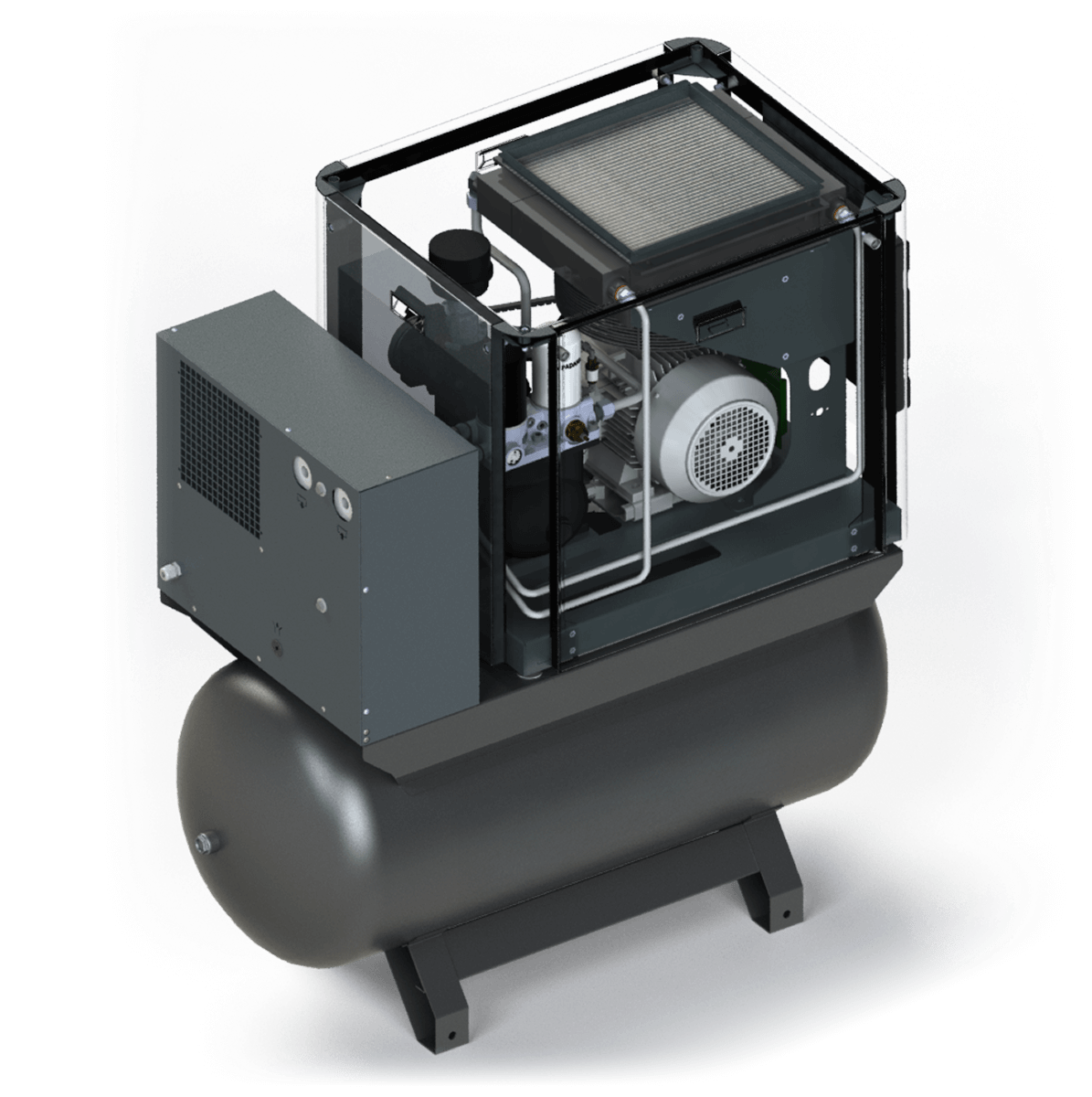

Compact cabinet

Optimal component arrangement for a compactdesign and easy maintenance.

Horizontal tank

Options for 270 and 500 liters.

Radiator and fan

Compact system, low noise level, high air exchange inside the cabinet.
Intake valve and air filter

The on/off valve works in synergy with the high efficiency intake filter, ensuring reliability and consistent performance.
Separator tank, oil filter, and separator filter

High air quality, compact system, simple maintenance. Small oil tank for intermittent or continuous work.
Refrigeration dryer

High air quality, limited pressure drop even under extreme load conditions, extremely stable dew point.
Lifting Bar

Ideal for perfect movement with a trolley without damaging the compressor body
Filters

Developed for efficient removal of solid particles, water, oil, hydrocarbons, and odors from the compressed air line with low pressure loss.
Inverter

The Inverter system ensures maximum energy savings. When compressed air demand varies, the compressor’s rotation speed adapts to the required output, increasing efficiency and reducing energy consumption.
Belt transmission

Motor and airend are connected with belt transmission, designed to minimise power losses and still to be efficient at high speeds. Low operating and maintenance costs.
Rigid air/oil connection pipes

No maintenance for the entire life of the compressor and increased heat dissipation and reliability.

Modello	Bar	p.s.i.	Hp	kW	It/min	cfm	m3/h	It.	Volt.	WxDxH (cm)	Kg
SB SE 4 L	8	114	5,5	4	605	21,2	36	270	400/3/50	153x60x140	258
SB SE 4 H	10	143			550	19,4	33
SB SE 4 HH	15	185			400	14	24
SB SE 5 L	8	114	7,5	5,5	820	30	50	270	400/3/50	153x60x140	265
SB SE 5 H	10	143			750	26,5	45
SB SE 5 HH	15	185			590	20,7	35
SB SE 7 L	8	114	10	7,5	1200	42	72	270	400/3/50	153x60x140	275
SB SE 7 H	10	143			1000	35	60
SB SE 7 HH	15	185			840	29,3	50,4
SB SE 4 i	6-13	85-189	5,5	4	200-550	7-19	12-33	270	400/3	153x60x140	263
SB SE 5 i	6-13	85-189	7,5	5,5	340-850	12-30	20,4-51	270	400/3	153x60x140	270
SB SE 7 i	6-13	85-189	10	7,5	480-1200	17-42	28,8-72	270	400/3	153x60x140	280

Modello	Bar	p.s.i.	Hp	kW	It/min	cfm	m3/h	It.	Volt.	WxDxH (cm)	Kg
SB SE 4 L	8	114	5,5	4	605	21,2	36	500	400/3/50	185x60x147	297
SB SE 4 H	10	143			550	19,4	33
SB SE 4 HH	15	185			400	14	24
SB SE 5 L	8	114	7,5	5,5	820	30	50	500	400/3/50	185x60x147	320
SB SE 5 H	10	143			750	26,5	45
SB SE 5 HH	15	185			590	20,7	35
SB SE 7 L	8	114	10	7,5	1200	42	72	500	400/3/50	185x60x147	330
SB SE 7 H	10	143			1000	35	60
SB SE 7 HH	15	185			840	29,3	50,4
SB SE 4 i	6-13	85-189	5,5	4	200-550	7-19	12-33	500	400/3	185x60x147	302
SB SE 5 i	6-13	85-189	7,5	5,5	340-850	12-30	20,4-51	500	400/3	185x60x147	325
SB SE 7 i	6-13	85-189	10	7,5	480-1200	17-42	28,8-72	500	400/3	185x60x147	335

Warranty

OMIC stands for quality:
products designed tolast over time.
Up to 3 years warranty
(excluding consumable parts).
