Inverter-Driven Centrifugal Fans
The cooling system relies on inverter-controlled centrifugal fans that dynamically adjust their speed to match the actual thermal demand of the radiator. This adaptive approach significantly reduces energy consumption, while ensuring precise temperature control of both oil and air circuits. The variable-speed operation also contributes to noticeably lower noise levels and improved overall system efficiency.
New M215 RSU

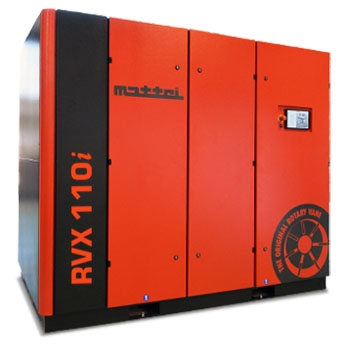

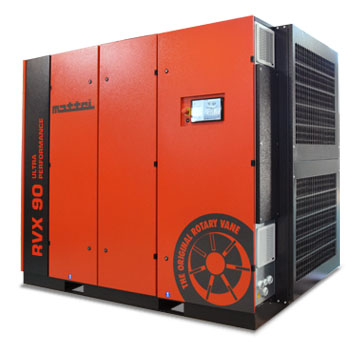

The heart of the RVX 90-110 UP & i is the brand-new M215 air-end, engineered to maximise air delivery while maintaining optimal energy efficiency. This design reflects a strategic move to integrate new technologies into a proven platform, enhancing efficiency, control, and overall performance
Direct Inlet System
The M215 air-end integrates a direct inlet system that ensures seamless airflow into the compression chamber, eliminating pressure drops and optimising the air-lubricant mixture. The result is a more stable, more consistent and more efficient compression process.
Xtreme Injection Technology
Building on Mattei's renowned Xtreme injection system, the M215 features axial nozzles that deliver superior cooling efficiency by keeping the air-end at its optimal operating temperature even under high load. A refined injection process reduces the amount of circulating oil, improving both separation and lubrication performance. The outcome is reduced wear, lower energy losses, extended component life and lower operating costs.
New Controller — MAIA
The RVX 90-110 UP & i is equipped with the new MAIA controller, featuring a 10-inch high-resolution touchscreen display for intuitive navigation and complete system management. Beyond a simple interface, MAIA delivers advanced diagnostics and analytics to continuously optimise compressor performance.
Electronic Thermostatic Valve
The electronic thermostatic valve dynamically regulates oil flow through the radiator or partial bypass circuit, based on the actual oil temperature at the separator. This ensures that the system always operates within its ideal thermal range, guaranteeing proper thermal control, consistent efficiency and protection of critical components across all load conditions.
Timed Oil Recovery System
An integrated timed oil recovery system ensures that oil is managed efficiently throughout the compression cycle, minimising losses and supporting cleaner, more sustainable operation. This system works in synergy with the Xtreme injection technology to maintain optimal lubrication at all times.
Multiple Drain Ports
Strategically positioned drain ports throughout the machine enable easy and convenient servicing, reducing maintenance time and supporting clean, efficient operations.
