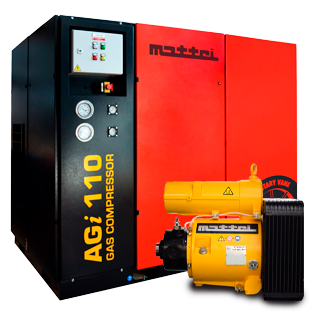

GAS Compressors

Mattei designs rotary vane compressors to compress different types of gas (sweet gas, acid gas and biogas). The complete range of GAS machines ranges from 4kW up to 200 kW and is available as stand-alone units for OEM applications or according to specific customer needs.



Download Catalogue

BENEFITS

Atex Conformity

All Mattei compressors in the GAS range comply with the requirements of the Atex (Atmosphères Explosives) directives.

Reliability Over Time

Mattei gas compressors work at full capacity 24/7

The rotor, blades, stator and covers are made entirely of cast iron. This construction feature ensures:

  • no replacement necessary;
  • totally reliable operation;
  • duration of the compressor over time;
  • greater efficiency.

Control of Gas flow Rate at Constant Pressure

A particular software performs a feedback control function, before the gas is introduced into the compressor, checking that the suction pressure is compliant with the parameters set based on the request.

Excellent Gas Quality

Mattei compressors' multi-stage filtration system guarantees excellent gas quality.

Ease of Installation

Thanks to their compact design, the installation of GAS compressors is quick and space-saving.

Range

The range of GAS machines with power ratings from 4kW up to 200 kW is available as stand-alone units for OEM applications or according to customer specifications. All versions are complete with automatic flow rate control at constant pressure, integrated or remote radiator and threaded or flanged gas inlet device.

Custom Solutions

Possibility to create customised solutions, for specific applications or critical environmental conditions.

  • RANGE



    Rated power 4 to 200 kW
    F.A.D. 0.4 to 35.3 m3/min
    Working pressures 7/10/13 bar
  • FEATURES



    Compression technology Rotary Vane
    Output 0% to 100%
    Drive system Direct coupled with elastic element
    Cooling Air/water – Integrated or remote panel cooler
    Temperature protection Thermistor
    Controller Fully customisable remote PLC control
    Maestro XS
    Pressure Control Servo with modulation - Pressure sensor - External signal Reference
    Pressure protection Safety valve
    Operating ambient range 5C to + 45C (23F to + 113F)
    Inlet pressure range 0 to 650mbar (0 to 8.7psi)
    Acceptable gases Sweet Gas
    Sour Gas
    Bio Gas
    Maximum allowable free moisture None
    Maximum allowable H2S 800ppm
    Lubricant Mattei V-Life Gas
    Laws and conformity 2006/42/EC – Machinery directive
    92/27/CW PED - directive on pressure equipment
    94/9/CE – ATEX - Systems intended for use in potentially explosive atmospheres
    Optional Feature Active Zener Barrier
