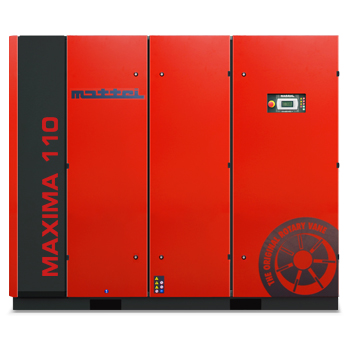

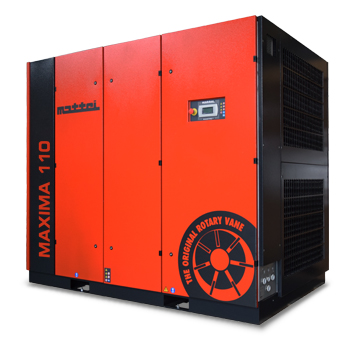

MAXIMA 110

When a steady flow of compressed air supplied for a prolonged period of time is needed, Maxima 110 air compressors are the ideal solution to cut production costs and energy consumption.
Flow rate 23.35 m3/min.
Power 110 kW.



Download Catalogue

BENEFITS

Installations

  • Soundproofed Plus version with integrated drier: fitted with direct expansion, air-cooled refrigerated compressed air dryers filled with environmentally friendly gas, which translate to a full, yet particularly compact, system. Particularly suitable for applications where dry, moisture-free air is of crucial importance for production.
  • Soundproofed R version with heat recovery kit: recovers the heat produced during the compressor's operation and makes it available for heating water for industrial or domestic use.
  • Soundproofed W version fully watercooled: it cools oil and air entirely with water and is suitable for environments where the heat produced by the compression process is particularly complex to dissipate.

Energy savings

Equipped with IE3 efficiency class electric motor, Maxima 110 series compressors ensure an energy consumption per m³/min of air among the lowest in their category. The low rotation speed of the air end (only 1.000 rpm at 50 Hz) and the 1:1 direct coupling between the electric motor and the compressor allow energy savings of more than 15% compared to other rotary compressors.

Soft Start

This solution starts the motor progressively, thus drastically reducing the power used during this particular phase. Limiting the absorption means reducing electrical and mechanical stress of the machine and the system, and reducing energy consumption.

Dual Speed Cooling

A dual speed electric fan that senses heat changes ensures constant internal compressor temperature, by increasing or decreasing the cooling air flow.

Simple, Economical Maintenance

Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of rolling bearings contributes significantly to reducing maintenance costs.
These costs are however low because the vanes, rotor and stator have an almost unlimited life if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.

Compact Design and Silent Operation

The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. They are also coated inside with abundant soundproofing material.

Quality Air

The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation guarantees a residual oil content in the air of less than 3 mg/m³.

Electronic Control

Maxima 110 compressors are equipped with the exclusive Maestro XS electronic controller that makes it possible to control, monitor and program the compressor's operation. The unit can also be controlled remotely via a PC connection.

  • FEATURES 50 HZ



    Model MAXIMA 110
    Max. Operating Pressure 8 bar(g) | 116 psig
    Max. F.A.D. 23,35 m3/min | 825 cfm
    Sound Pressure Level 70 dB(A)
    Power 110 kW | 150 hp
    Voltage 400 V
    Frequency 50 Hz
    Phases 3
    Length 2350 mm | 93 inch
    Width 1440 mm | 57 inch
    Height 1980 mm | 78 inch
    Weight 2840 kg | 6248 Ibs
  • FEATURES 60 HZ



    Model MAXIMA 110
    Max. Operating Pressure 8 bar(g) | 116 psig
    Max. F.A.D. 24 m3/min | 847 cfm
    Sound Pressure Level 72 dB(A)
    Power 110 kW | 150 hp
    Voltage 460 V
    Frequency 60 Hz
    Phases 3
    Length 2350 mm | 93 inch
    Width 1440 mm | 57 inch
    Height 1980 mm | 78 inch
    Weight 2840 kg | 6248 Ibs
