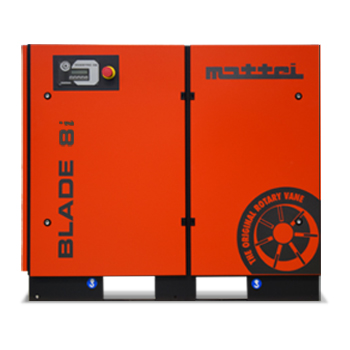

BLADE i 8-12

The Blade i 8-12 series air compressors are the perfect solution for small and medium-sized companies and small craft businesses. Equipped with inverters, they ensure top energy savings thanks to the automatic adjustment of motor-compressor rotation speed, whereby the compressed air supplied by the system meets real-time requirements at all times.



Download Catalogue

BENEFITS

Versions



  • Soundproofed E version with dryer: Particularly suitable for applications where dry, moisture-free air is of crucial importance for production.
  • Soundproofed S version on receiver: version mounted on 270-l tank. It may be supplied with certification for AD 2000 pressurised receivers.
  • Soundproofed SE version with dryer on receiver.
  • Version with IE4 energy-efficiency motor.



Energy Savings

Equipped with high efficiency IE3 electric motors.
The low rotation speed of the air end and the 1:1 direct coupling between the electric motor and the compressor ensure energy savings of more than 15% compared to other rotary compressors.

Inverter

When compressed air is required within 100% and 40% of flow rate values, the compressor rotation speed adjusts to maximum efficiency levels, with notably lower energy consumption in comparison with traditional inverter systems.

Optimised Cooling System

The electric fan with built-in inverter regulates the cooling air flow depending on the machine oil temperature.

Simple, Economical Maintenance

Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of roller bearings contributes significantly to reducing maintenance costs. These standard maintenance costs are, however, low due to the almost unlimited lifespan of the vanes, rotor and stator if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.

Compact Design and Silent Operation

The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. The interiors are also coated with abundant soundproofing material.

Quality Air

The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation guarantees a residual oil content in the air of less than 3 mg/m³.

Electronic Controller

Blade i 8-12 series compressors are equipped with a Maestro XB electronic controller, whose graphic display allows constant monitoring of oil temperature, line pressure, operation, and load hours.

  • FEATURES
    Model Max. Operating Pressure F.A.D. Sound Pressure Level Nominal Power
      bar(g) psig m3/min cfm dB(A) kW hp
    400-460V/50-60Hz/3
    BLADE 8 i 7-10 102-145 0.76-1.20 27-42 66 7.5 10
    BLADE 12 i 7-10 102-145 1.06-1.68 37-59 66 11 15
  • DIMENSIONS
    Model Length
    Width Height Weight
      mm inch mm inch mm inch kg lbs
    400-460V/50-60/3
    BLADE 8 i

    1180

    46,5

    760

    29,9

    990

    39

    273

    602

    BLADE 12 i

    1180

    46,5

    760

    29,9

    990

    39

    311

    686
