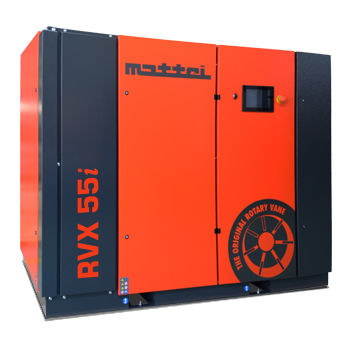

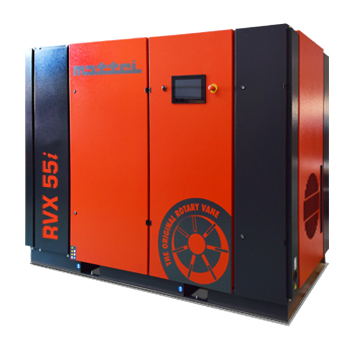

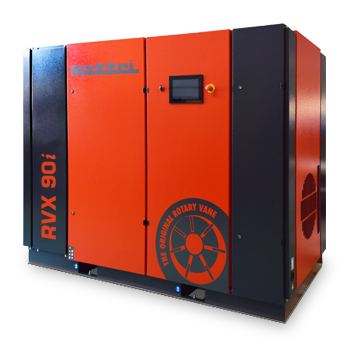

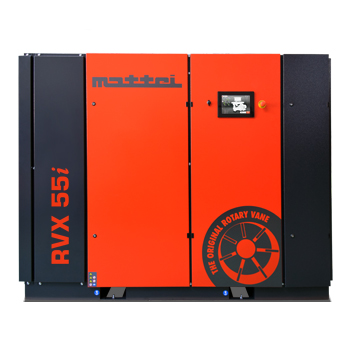

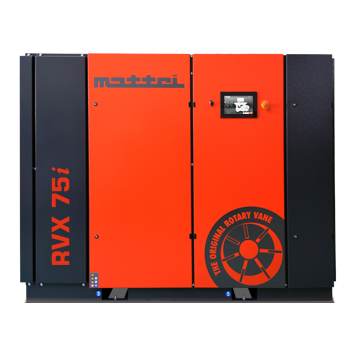

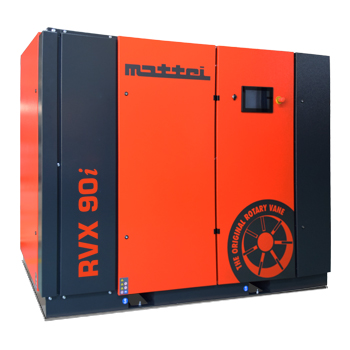

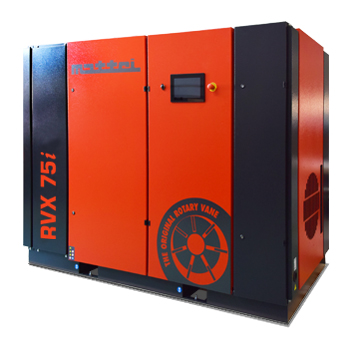

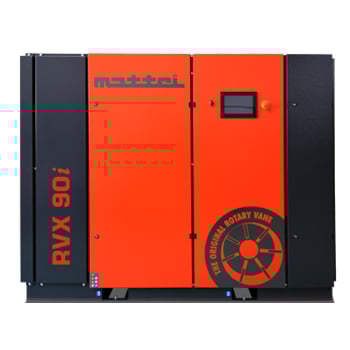

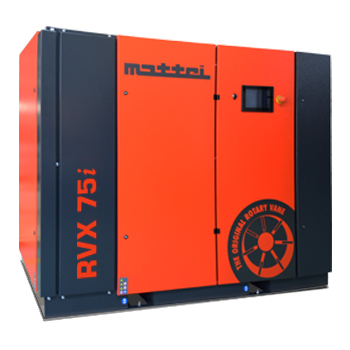

RVX 55-75-90

RVX 55-75-90i series rotary vane compressors focus on sustainability and energy-savings. Equipped with an inverter, this model uses the innovative and patented Xtreme Injection Technology, and Mattei Cloud connectivity that propels you and Mattei into the world of Industry 4.0.
Flow rate from 4.94 to 16.55 m³/min.
Powers of 55, 75 and 90 kW.



Download Brochure

BENEFITS

Configurations

  • Soundproofed Plus version with integrated drier: fitted with direct expansion, air-cooled refrigerated compressed air dryers filled with environmentally friendly gas, which translate to a full, yet particularly compact, system. Particularly suitable for applications where dry, moisture-free air is of crucial importance for production.
  • Soundproofed R version with heat recovery kit: recovers the heat produced during the compressor's operation and makes it available for heating water for industrial or domestic use.
  • Soundproofed W version fully water-cooled: it cools oil and air entirely with water and is suitable for environments where the heat produced by the compression process is particularly complex to dissipate.

Energy Savings

RVX 55-75-90 i compressors are equipped with IE3 or IE4 classified, energy-efficient motors. In combination with variable speed compressors, governed by an inverter, energy-savings in excess of 30% are achievable, as such, RVXi Series compressors when outfitted with an IE4 rated motor, deliver IE5 efficiency class performance for the entire package.

Inverter

The inverter system is designed to automatically adjust the motor rotation speed, thus adapting the output air flow to the changing system requirements. It adjusts the compressor rotation speed according to the actual usage, avoiding unnecessary energy waste to make our machines even more efficient.

Xtreme Thermal Management

The energy-saving electric fan connected to the inverter regulates the cooling air flow depending on the machine oil temperature. This system is managed by an electronic thermostatic valve, which works symbiotically with the variable speed fan on the basis of actual oil temperatures, to optimise energy consumption and maintain the desired operating temperature.

XTREME OIL INJECTION TECHNOLOGY

This innovative and proprietary lubrication advancement blankets the compression cells with a fine mist of atomised oil to capture the heat of compression more efficiently than traditional methods. This improves the cell volume-to-lubricant ratio and improves the thermal exchange between air-and-oil during the compression process to achieve unrivalled levels of energy efficiency in the rotary compressor sector.

Simple, Economical Maintenance

Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of roller bearings contributes significantly to reducing lifecycle maintenance costs.
These costs are however low because the vanes, rotor and stator have an almost unlimited life if proper maintenance is performed. Over 100,000 hours of operation are typical without the need to replace or re-bearing the compression unit.

Compact Design and Silent Operation

The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. They are also coated inside with abundant soundproofing material.

Quality Air

The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation guarantees a residual oil content in the air of less than 1-3 mg/m³.

Electronic Control

RVX 55-75-90 I compressors are equipped with Maestro XC controller that makes it possible to control, monitor and program the compressor's operation. This controller monitors compressor parameters in real-time. The unit can also be controlled remotely via the Mattei XCloud internet portal.

  • FEATURES
    Model Nominal Operating Pressure*


    Sound Pressure Level Nominal Power


    7-10 bar(g)

    102-145 psig

    7-13 bar(g)

    102-189 psig

    (H)


      m3/min cfm m3/min cfm dB(A) kW hp
    400-460-575V/50-60HZ/3
    RVX 55 i 5.22-10.3 184-364 4.94-9.75 174-344 68 55 75
    RVX 75 i 6.55-12.94 231-457 6.05-11.92 214-421 68 75 102
    RVX 90 i 8.39-16.55 296-584 6.43-12.67 227-447 68 90 122

    *Performances after 500 hours running in. For zero hours performances contact Mattei
  • DIMENSIONS
    Model Length Width Height Weight
      mm inch mm inch mm inch kg lbs
    400-460-575V/50-60HZ/3
    RVX 55 i 2420 95 1245 49 1890 74 1770 3902
    RVX 75 i 2420 95 1245 49 1890 74 1770 3902
    RVX 90 i 2420 95 1245 49 1890 74 1970 4343
