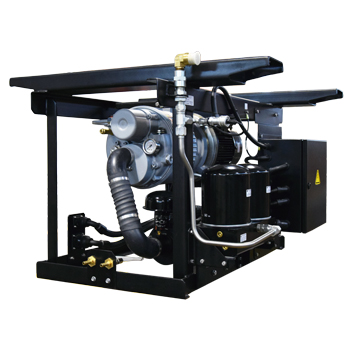

T4_Pagina prodotto_RVR 03-APM 300-3

Rail transport applications

Thanks to their innovative rotary vane technology, Mattei air compressors are the ideal solution for the supply of compressed air in rail transport applications. Mattei offers Air-Ends specifically dedicated to vehicle applications, RVR range, and complete packages.



Download Catalogue

BENEFITS

Energy Savings

Mattei compressors are designed based on energy savings and they are equipped with IE3 efficiency class motors.
The low rotation speed of the air end and the 1:1 direct coupling between the electric motor and the compressor ensure energy savings of more than 15% compared to other rotary compressors.

Reduced Operating Cost in the Long Period

Mattei compressors boast the lowest Life Cycle Cost of any air compressor on the market. In railway applications, a Mattei vane compressor ensures more than 35,000 hours of operation with original vanes and original brass bearings.

Perfect Integration

Mattei solutions can be integrated into vehicle systems, either as new installations or as renovations of existing systems. They can be mounted in a complete compressed air generation and treatment unit (AGTU) configuration or they can be used as flexible modules for installations in more extreme environments, guaranteeing an air quality suitable for any type of railway fleet application.

Low Noise Emissions and No Vibrations

Low rotation speed and the reduced number of moving components ensure low noise levels and absence of vibrations even in solutions without external bodywork.

Extreme Operating Conditions

Mattei compressors are able to operate in any weather or environmental condition while maintaining the same quality of the compressed air produced, reliability and operational safety. All components are made with an exclusive cast iron mixture that prevents problems related to differences in thermal expansion. They are also resistant to scratches and corrosion.



Flexible Design

Thanks to the flexible design the compressor can be coupled with a variety of different types of motors, meeting the demands and requirements of vehicle applications. Moreover, the compact and lightweight Mattei solutions can meet the most demanding space requirements.

Simple and Economical Maintenance

Maintenance only involves changing the oil at scheduled intervals, cleaning or changing the air filter and cleaning the radiator. The absence of rolling bearings contributes significantly to reducing maintenance costs. These standard costs are, however, low because of the near unlimited lifespan of the vanes, rotor and if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.

Applications

  • Tram
  • Underground
  • Commuter trains
  • Passenger automatic shuttles
  • Regional trains
  • Locomotives
  • Hybrid locomotives
  • Shunting locomotives
  • High speed trains
  • Rail transport application systems

  • RANGE



    Rated power 1.1 to 55 kW
    F.A.D. 160 to 6000 l/min
    Working pressures from 6 to 13 bar
    Voltage 120V - 3000V
    Frequency 33 - 100Hz
    Extra Custom Inverters
  • FEATURES



    Compression technology Rotary Vane
    Output 0% to 100%
    Flow 160/6000 l/min
    Pressure from 6 to 13 bar
    Ambient Temp. - 40°C + 60°C
    Sound pressure level 60 - 80 dBa
    Coupling Belt Drive
        Direct Drive
    Drive Hydraulic Drive
        DC Motor
        Asynchronous Motors
        Permanent Magnet Motors
    Voltage 120V - 3000V
    Frequency 33 - 100 Hz
    Relative Humidity Up to 98%
    Extra High Efficiency Intake Flters
        Dryers
        Soundproofing
        Custom inverters
