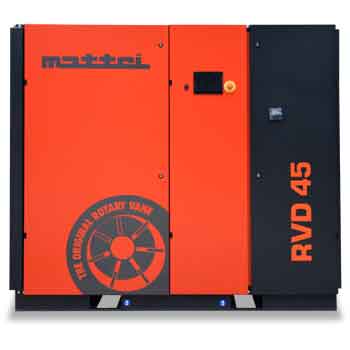

RVD 30-37-45-55

Mattei RVD 30-55 direct-drive fixed-speed air compressors are easy to handle, robust and versatile, and are the perfect solution for small and medium-sized companies and small craft businesses.

Flow rate from 202 to 325.9 acfm

Powers of 40/50/60/75 HP



Download Brochure

BENEFITS

ENERGY SAVINGS

Equipped with high efficiency IE3 electric motors (IE4 option also available).

The low rotation speed of the air end and the 1:1 direct coupling between the electric motor and the compressor ensure energy savings of more than 15% compared to other rotary compressors.






SIMPLE, ECONOMICAL MAINTENANCE

The RVD series requires minimum maintenance, the few operations required are facilitated by proper kits specifically designed to speed up the operations. Maintenance costs are low because the vanes, rotor and stator have an almost unlimited life if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.

ENHANCED COOLING

Advanced Cooling Zone Technology keeps the cabinet interior clean and cool in hot dirty environments. A fixed-speed radial fan with dependable IEC motor draws ambient air through rear-panel mounted oversized coolers into the Isolated Cooling Zone and exhausts the hot air through the roof ready for disposal or heat reclamation. Access panels make for fast and easy radiator cleaning. Rated to 113°F ambient.

SUCTION AND NON-RETURN VALVE

When air demand is satisfied, the suction and non-return valve release internal pressure and allows the compressor to run with no load. This minimizes energy consumption, without the need to stop the compressor. The number of stops and subsequent start-ups is therefore reduced to the benefit of the service life of compressor and electric motor.

QUALITY COMPRESSED AIR

The special multi-stage air-oil separation filter is rated for 10.000 hours, and the oil filter is rated for 5.000 hours or, about double the life of conventional filters. The system ensures a content of residual oil lower than 3 ppm w/w.

ELECTRONIC SOFT-STARTING

Rugged and reliable electronic soft-starter gently accelerates motor to eliminate the starting shock of wye-delta starters, extends drive train component life and reduces energy provider demand charges.

ELECTRONIC CONTROLLER

IIoT Industry 4.0 ready Maestro XC, 7” touchscreen control panel includes ethernet connectivity and a 4G modem as standard. Communicates with the free Mattei Cloud to be able to deliver real-time operational and historical data globally.

INTEGRATED OIL QUALITY SENSOR

This option provides for real-time Industry 4.0 ready predictive maintenance modeling of lubricant acidity. Interfaces with Maestro XC controller programed to manage sensor output. Lubricant condition can be monitored remotely by customer or distributor via the free Mattei Cloud.

  • FEATURES
    Model Nominal Operating Pressure*
      Sound Pressure Level Nominal Power


    8 bar (g)

    116 psig

    L

    10 bar (g)

     145 psig

    H

    13 bar (g)

    189 psig

    HH


      m3/min acfm m3/min acfm m3/min acfm dB(A) kW hp
    460V/60Hz/3
    RVD 30 5.76 203.41 4.65 164.21 3.46 122.18 68 30 40
    RVD 37 6.85 241.9 5.77 203.76 4.53 159.97 68 37 50
    RVD 45 8.29 292.75 7.05 248.96 5.96 210.47 68 45 60
    RVD 55 9.10 321.36 7.83 276.51 6.8 240.13 68 55 75
  • DIMENSIONS
    Model Length Width Height Weight
      mm inch mm inch mm inch kg lbs
    460V/60Hz/3
    RVD 30 2125 84 1080 43 1885 74 1100 2425
    RVD 37 2125 84 1080 43 1885 74 1140 2513
    RVD 45 2125 84 1080 43 1885 74 1220 2690
    RVD 55 2125 84 1080 43 1885 74 1260 2778
