Classic ERC series

Mattei Classic ERC series air compressors feature open-frame base-mount construction and are perfect for any industrial application. Models from 5 to 20 HP/4 to 15 kW are also available mounted and piped onto an air receiver tank.

Download Catalogue





Main technical features of the ERC series:

  • low rotation speed: the electric motor, which turns at just 1,800 rpm (60 hz), is directly coupled to the compressor shaft through a flexible coupling. This provides great energy savings and less maintenance as there are no transmission losses due to the absence of gears or V-belts;
  • automatic flow rate control: in addition to the classic “FULL LOAD/NO-LOAD OPERATION” modes, all models are provided with a special proportional modulating suction valve that allows constant pressure of the air supply and affords the possibility of operating even without an air receiver tank. With this MODULATION control setting, the air flow rate automatically maintains a tight pressure band as it adapts to the air demands of the network;
  • robust and noiseless: painted with epoxy powders ERC series compressors are resistant to corrosion and scratches. Very compact, they are ideal for installation in confined areas. Vane technology ensures rugged reliability and silent operation even in the absence of a sound attenuating enclosure;
  • simple and accessible maintenance: the absence of a sound attenuating enclosure simplifies access for all maintenance and service operations. The base-mount design can be easily lifted and moved;
  • provided as standard with Start/Stop pushbuttons and Hand/Off/Automatic selector switch simplifies compressor operation.
ERC 1-2

Open-frame lubricated compressors perfect for any industrial application. Flow rate from 5.1 to 6.7 acfm Powers: 2 HP, 3 HP/1.5 kW, 2.2 kW

ERC 504-505-507-511-515

Open-frame lubricated compressors perfect for any industrial application. Flow rate from 23 to 75 acfm Powers: 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP/4 kW, 5.5 kW, 7.5 kW, 11 kW, 15 kW

ERC 1018-1022-1030

Open-frame lubricated compressors perfect for any industrial application. Flow rate from 105 to 154 acfm Powers: 25 HP, 30 HP, 40 HP/18 kW, 22 kW, 30 kW

ERC 2037-2045

Open-frame lubricated compressors perfect for any industrial application. Flow rate from 212 to 260 acfm Powers: 50 HP, 60 HP/37 kW, 45 kW

FIXED SPEED COMPRESSORS

T3_Pagina serie_serie correlate_AC 30-45

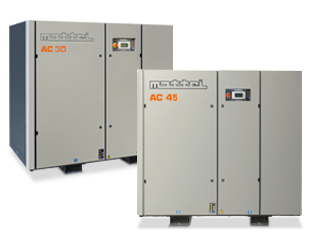

AIR CENTER Series

40-60 HP/30-45 kW: Sophisticated quiet cabinet style air compressors perfect for any industrial application.

Discover the series

T3_Pagina serie_serie correlate_MAXIMA 30-MAXIMA 110

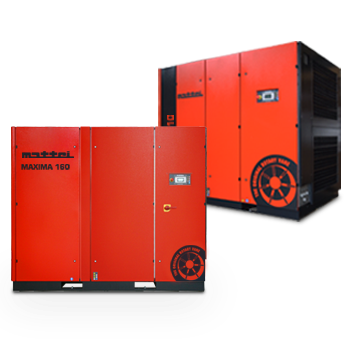

MAXIMA Series

40-200 HP/30-160 kW: Heavy-duty, premium designs for industrial grade applications

Discover the series

T3_Pagina serie_serie correlate_BLADE SERIES

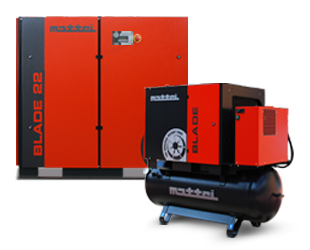

BLADE Series
