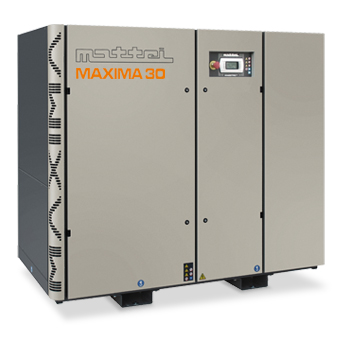

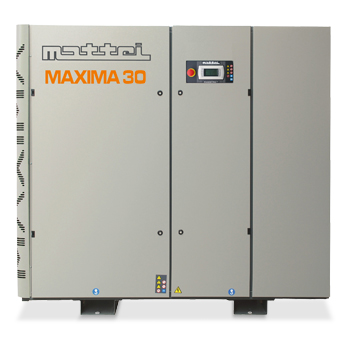

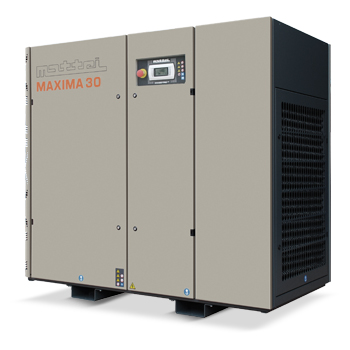

MAXIMA 30

In conditions requiring a constant, uniform supply of compressed air, Maxima 30 air compressors are the best solution to save energy.

Download Catalogue

BENEFITS

Versions



  • Soundproofed Plus version with integrated dryer: Particularly suitable for applications where dry, moisture-free air is of crucial importance for production.
  • Soundproofed R version with heat recovery kit: recovers the heat produced during the compressor's operation and makes it available for heating water for industrial or domestic use.
  • Soundproofed W version fully water-cooled: it cools oil and air entirely with water and is suitable for environments where the heat produced by the compression process is particularly difficult to dissipate.



Energy Savings

Equipped with high efficiency IE3  electric motors.
The low rotation speed of the air end and the 1:1 direct coupling between the electric motor and the compressor ensure energy savings of more than 15% compared to other rotary compressors.

Simple, Economical Maintenance

Maintenance is limited to changing the oil at scheduled intervals, cleaning or changing the air filter, and cleaning the radiator. Separator filters are replaced every 10,000 working hours. The absence of roller bearings contributes significantly to reducing maintenance costs.
These standard costs are, however, low because of the near unlimited lifespan of the vanes, rotor and if proper maintenance is performed. Over 100,000 hours of operation are guaranteed without the need to replace the compression unit.

Compact Design and Silent Operation

The compact design and small footprint allow installation even in confined spaces. Large hinged doors and easily removable panels allow complete accessibility for all maintenance and service operations. The base is equipped with openings that permit easy lifting and handling.
Mattei air compressors are coated with epoxy powders, resistant to both corrosion and scratches. The interior is coated with abundant soundproofing material.

Quality Air

The 99% efficient filtration system ensures quality compressed air for every application, while the special multi-stage oil separation guarantees a residual oil content in the air of less than 3 mg/m³.



Electronic Control

Maxima 30 is equipped with the exclusive Maestro XS electronic controller that makes it possible to control, monitor and program the compressor's operation. The unit can also be connected to a PC and controlled remotely.

  • FEATURES



    Model MAXIMA 30
    Max. Operating Pressure 8 bar(g) | 116 psig
    Max. F.A.D. 6,45 m3/min | 228 cfm
    Sound Pressure Level 5 dB(A)
    Power 30 kW | 40 hp
    Voltage 400 V
    Frequency 50 Hz
    Phases 3
    Length 1830 mm | 72 inch
    Width  960 mm | 38 inch
    Height 1670 mm | 66 inch
    Weight 920 kg | 2024 Ibs
